CyberArk Conjur

info

✨ This is an Enterprise Feature

Enterprise Pricing

Contact us here to get a free trial

Feature	Support	Description
Reading Secrets	✅	Read secrets e.g OPENAI_API_KEY
Writing Secrets	✅	Store secrets e.g Virtual Keys
Deleting Secrets	❌	Secrets must be removed via policy updates

Read and write secrets from CyberArk Conjur (self-hosted secrets manager)

Step 1. Add CyberArk Conjur details in your environment

LiteLLM supports two methods of authentication:

1. API key authentication - CYBERARK_API_KEY (recommended)
2. Certificate authentication - CYBERARK_CLIENT_CERT and CYBERARK_CLIENT_KEY

Environment Variables

CYBERARK_API_BASE="http://your-conjur-instance:8080"
CYBERARK_ACCOUNT="default"
CYBERARK_USERNAME="admin"

# Authentication via API key (recommended)
CYBERARK_API_KEY="your-api-key-here"

# OR - Authentication via certificate
CYBERARK_CLIENT_CERT="path/to/client.pem"
CYBERARK_CLIENT_KEY="path/to/client.key"

# OPTIONAL
CYBERARK_REFRESH_INTERVAL="300" # defaults to 300 seconds (5 minutes), frequency of token refresh
CYBERARK_SSL_VERIFY="true" # defaults to true, set to "false" to disable SSL verification (for self-signed certificates)

Step 2. Add to proxy config.yaml

Proxy Config

general_settings:
  key_management_system: "cyberark"

  # [OPTIONAL SETTINGS]
  key_management_settings:
    store_virtual_keys: true # OPTIONAL. Defaults to False, when True will store virtual keys in secret manager
    prefix_for_stored_virtual_keys: "litellm/" # OPTIONAL. If set, this prefix will be used for stored virtual keys in the secret manager
    access_mode: "read_and_write" # Literal["read_only", "write_only", "read_and_write"]

Step 3. Start + test proxy

Start Proxy

$ litellm --config /path/to/config.yaml

Quick Test Proxy

Writing Virtual Keys to CyberArk

When you create a virtual key in the LiteLLM UI, it automatically gets stored in CyberArk Conjur.

Step 1: Create a virtual key in the LiteLLM Admin UI

In this example, we create a key named litellm-cyber-ark-secret-key:

Step 2: Verify the secret exists in CyberArk

You can verify the virtual key was stored in CyberArk by querying the secrets API:

Verify Secret in CyberArk

TOKEN=$(curl -s -X POST http://0.0.0.0:8080/authn/default/admin/authenticate \
  -d "your-api-key" | base64 | tr -d '\n')

curl -H "Authorization: Token token=\"$TOKEN\"" \
  "http://0.0.0.0:8080/resources/default/variable" | jq .

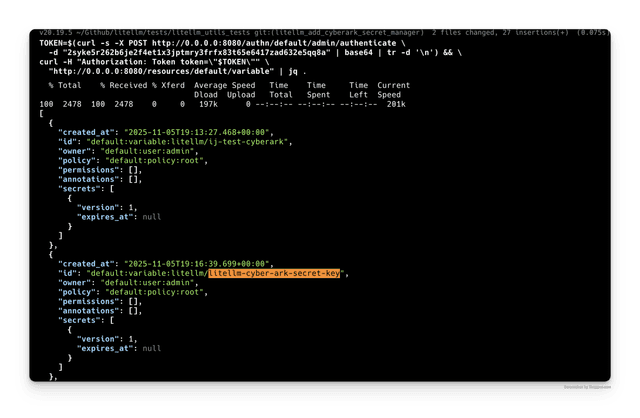

The response shows litellm-cyber-ark-secret-key exists in CyberArk:

The virtual key is stored with the full path: default:variable:litellm/litellm-cyber-ark-secret-key

How it works

Authentication

CyberArk Conjur uses a two-step authentication process:

1. LiteLLM authenticates with your API key to get a session token
2. The session token (base64-encoded) is used for subsequent API requests
3. Tokens expire after ~8 minutes, so LiteLLM caches and refreshes them automatically

Reading Secrets

LiteLLM reads secrets from CyberArk Conjur using the following URL format:

{CYBERARK_API_BASE}/secrets/{ACCOUNT}/variable/{SECRET_NAME}

For example, if you have:

• CYBERARK_API_BASE="http://conjur.example.com:8080"
• CYBERARK_ACCOUNT="default"
• Secret name: AZURE_API_KEY

LiteLLM will look up:

http://conjur.example.com:8080/secrets/default/variable/AZURE_API_KEY

Writing Secrets

When a Virtual Key is created on LiteLLM, the following happens automatically:

1. LiteLLM creates a policy entry to define the variable in Conjur (if it doesn't exist)
2. LiteLLM sets the secret value via the Conjur API

LiteLLM stores secrets under the prefix_for_stored_virtual_keys path (default: litellm/)

For example, a virtual key would be stored as: litellm/virtual-key-name

Important Notes

• Variables must be defined in a Conjur policy before setting their values
• LiteLLM automatically creates policy entries when writing new secrets
• Secret names with slashes (e.g., litellm/key) are automatically URL-encoded
• Session tokens are cached for 5 minutes by default to minimize API calls

Troubleshooting

If you're experiencing issues with the LiteLLM integration, first validate that your CyberArk Conjur instance is working correctly. Run these curl commands directly against your CyberArk endpoints to verify connectivity and authentication:

Step 1: Authenticate and get a token

Replace http://conjur.example.com:8080 with your CYBERARK_API_BASE and use your actual credentials:

Authenticate

TOKEN=$(curl -s -X POST http://conjur.example.com:8080/authn/default/admin/authenticate \
  -d "your-api-key" | base64 | tr -d '\n')

Step 2: Test reading a secret

Read Secret

curl -H "Authorization: Token token=\"$TOKEN\"" \
  "http://conjur.example.com:8080/secrets/default/variable/test-secret"

Step 3: Test writing a secret

Write Secret

curl -X POST \
  -H "Authorization: Token token=\"$TOKEN\"" \
  --data "my-secret-value" \
  "http://conjur.example.com:8080/secrets/default/variable/test-secret"

If these commands work successfully against your CyberArk instance, then CyberArk is functioning correctly and the issue is with your LiteLLM configuration. Check that:

• Your environment variables are correctly set
• The CYBERARK_API_BASE URL is accessible from your LiteLLM instance
• Your API key or certificates have the necessary permissions in CyberArk

SSL Certificate Errors

If you encounter SSL certificate verification errors like:

RuntimeError: Could not authenticate to CyberArk Conjur: [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: self-signed certificate in certificate chain

This typically occurs when your CyberArk Conjur instance uses a self-signed certificate. You can disable SSL verification by setting:

CYBERARK_SSL_VERIFY="false"

warning

Disabling SSL verification is insecure and should only be used for testing or development environments with self-signed certificates. For production, configure your certificate chain properly or use certificate-based authentication with CYBERARK_CLIENT_CERT and CYBERARK_CLIENT_KEY.

Video Walkthrough

This video walks through using CyberArk Conjur as a secret manager with LiteLLM. We create a virtual key in the LiteLLM Admin UI and verify it exists in CyberArk. Then we rotate the secret key and verify it exists in CyberArk.
